Graphite Broaching Jig

Precision-engineered graphite broaching jigs designed for high-precision machining and broaching operations. Perfect for demanding industrial environments requiring excellent dimensional stability and wear resistance.

Primary Application
Precision Broaching Operations
Operating Temperature
Up to 400°C
Material Grade
High Purity Industrial Graphite
Product Type
Broaching Jigs (Custom Sizes)
Wear Resistance
Excellent
Request Custom Quote

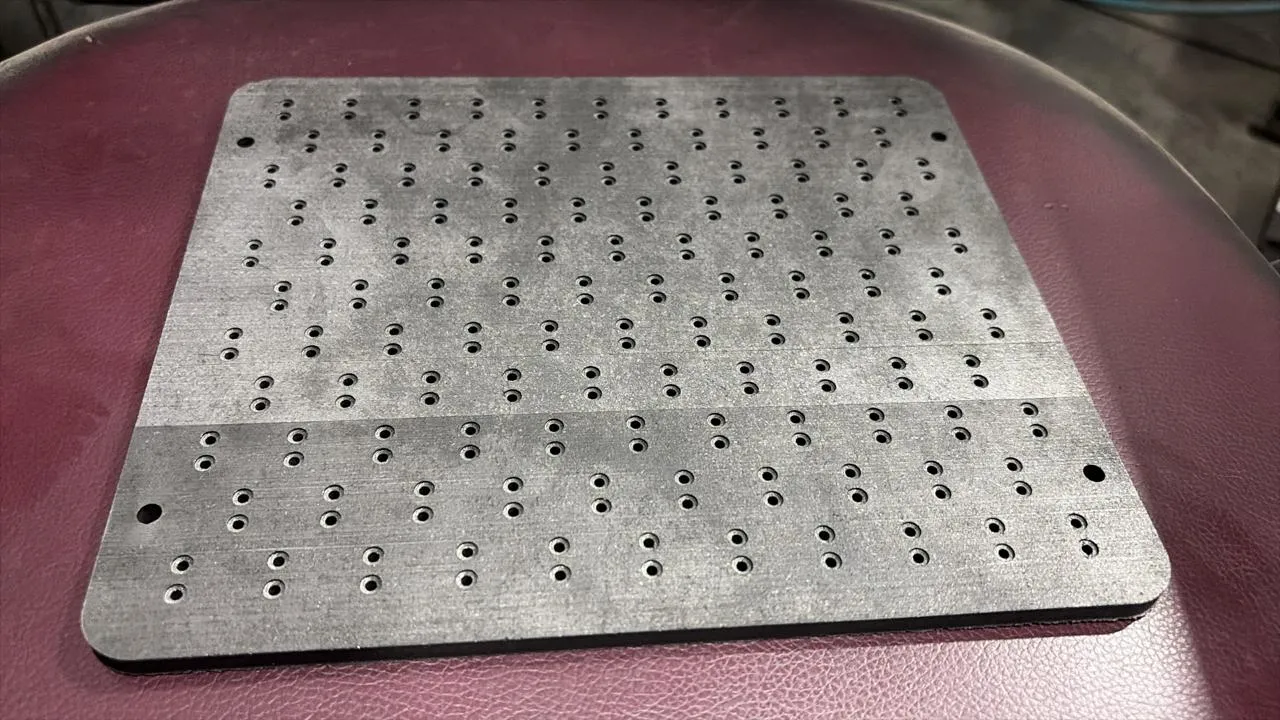

Graphite Broaching Jig

Product Overview

Our Graphite Broaching Jigs are precision-engineered components specifically designed for high-precision broaching and machining operations. These jigs are manufactured from premium graphite material, offering excellent dimensional stability and wear resistance.

Each component is engineered to maintain precise tolerances and provide superior performance in demanding machining environments. With superior material properties and precision manufacturing, our broaching jigs ensure reliable performance and extended service life.

Perfect for precision broaching operations requiring high accuracy and excellent wear resistance.

Quick Facts
  • Material: Premium Graphite
  • Type: Broaching Jigs
  • Temp Range: Up to 400°C
  • Customization: Available
  • Certification: ISO 9001:2015
Key Features & Benefits
Dimensional Stability
Maintains precise dimensions across temperature variations and repeated use cycles.
Excellent Wear Resistance
Superior wear resistance ensures long-lasting performance in continuous broaching operations.
Low Friction Surface
Smooth surface finish reduces friction and improves machining efficiency.
Precision Engineered
Manufactured to exact specifications for optimal fit and performance.

Technical Specifications

Parameter Specification
Material Premium Graphite Composite
Type Broaching Jigs
Application Precision Broaching Operations
Operating Temperature Up to 400°C
Dimensional Tolerance ±0.05mm
Density 1.8 - 2.1 g/cm³
Hardness Shore D 50-60
Customization Available for specific requirements
Quality Standard ISO 9001:2015 Certified

Industrial Applications

Precision Machining
Specialized jigs for precision broaching and machining operations.
Tool & Die Making
Optimized for tool and die making applications.
High-Precision Operations
Designed for high-precision manufacturing and broaching.
Durability & Reliability
Engineered for long-lasting performance in continuous operations.

Need Graphite Broaching Jigs?

Contact our expert team for customized solutions, technical support, and competitive pricing.

Get in Touch Today
×
